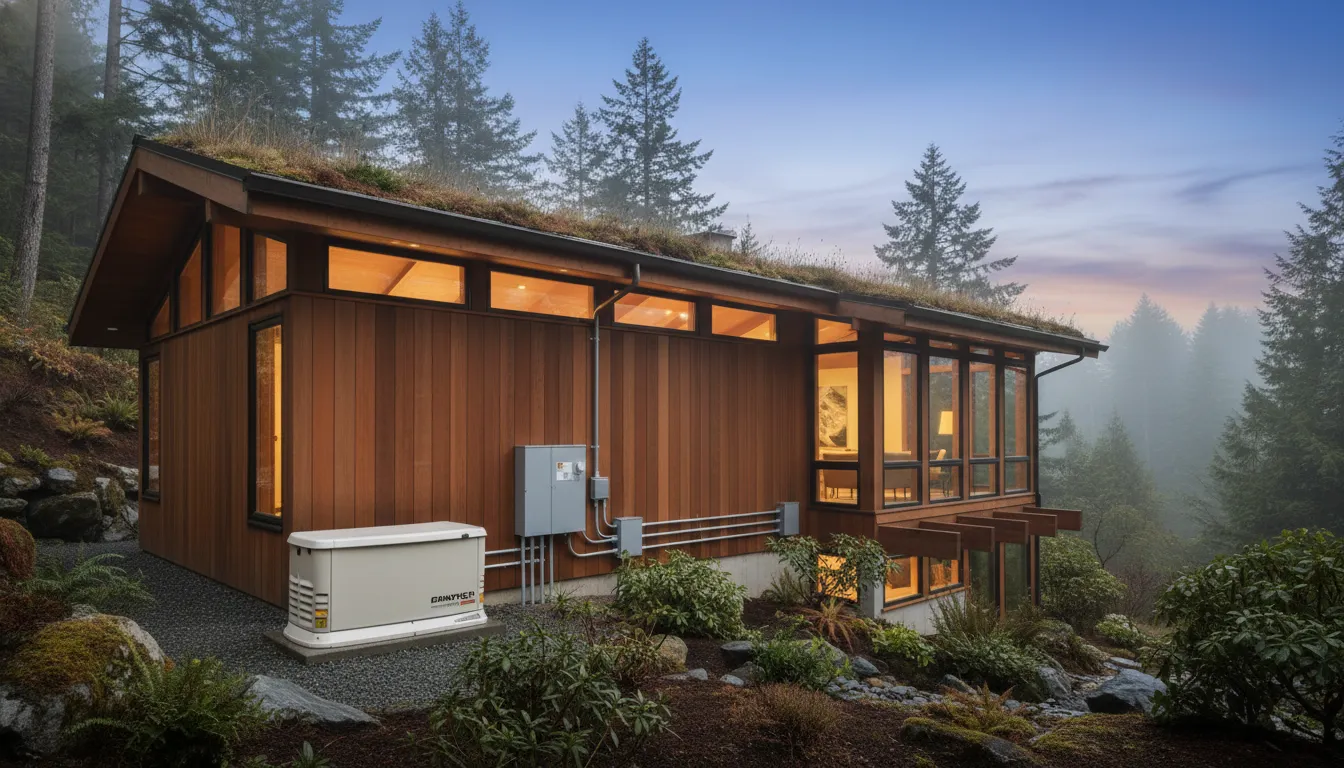

A whole-home generator cannot protect your routine unless its transfer switch makes the right move. That decision happens automatically, often before you have time to find a flashlight.

An automatic transfer switch for whole house generator systems moves a home from utility power to generator power during an outage without manual action. It serves as the system’s gatekeeper, monitoring utility voltage, signaling the standby generator to start, and waiting until generator output is stable. The switch then transfers the home’s connected circuits while keeping utility and generator power safely isolated, which helps protect utility workers and electrical equipment. When utility power returns, it reconnects the home, allows a generator cooldown period, and restores standby mode so the system is ready again. Correct sizing depends on the home’s electrical service, generator capacity, selected loads, enclosure rating, and placement, so a licensed electrician should confirm every part.

Before comparing ratings or placement options, you need a clear answer to the central question: What is an automatic transfer switch for a whole house generator? That foundation makes sizing, placement, and outage operation easier to understand, and the path begins with

Automatic Transfer Switch For Whole House Generator: What is an automatic transfer switch for a whole house generator?

An automatic transfer switch for a whole house generator is the control point between utility power, the standby generator, and the home’s electrical panel. It watches the utility supply and changes the home’s power source when an outage occurs. Because it controls that handoff, installers often call the switch the brain of a standby generator system.

How the automatic handoff works

During normal use, the switch keeps the home connected to utility power while the generator waits. When utility power fails, the switch sends a start signal to the generator. After generator power becomes stable, the switch moves the connected electrical load from the utility supply to the generator.

When utility power returns and remains stable, the switch moves the load back to the utility source. It then tells the generator to stop after its planned cool-down period. This controlled sequence limits the need for homeowner action and helps keep the two power sources apart.

Automatic versus manual transfer switches

A manual transfer switch also changes a home’s power source, but a person must operate it. That setup requires someone to be home, start the generator, and move the switch. An automatic switch performs the change without that hands-on step, which suits a fixed whole-home standby system.

Both switch types must prevent utility power and generator power from feeding the home at the same time. This separation helps protect equipment and people working on electrical lines. OSHA’s overview of electrical safety explains why contact with electrical power remains a serious hazard.

Why professional installation matters

The switch must match the generator, electrical service, panel setup, and loads the homeowner plans to back up. It also needs the right location and wiring. These choices affect whether the system can transfer power safely and run the intended circuits during an outage.

A qualified installer reviews the home before selecting and placing the switch. The work may involve the main service, permits, and coordination with the utility. Homeowners can use these automatic transfer switch questions when comparing installers and proposed system designs.

Pro Tech Power Corp includes transfer-switch sales, installation, and setup within a complete standby generator project. Its transfer switch selection guidance also explains how this equipment can affect the scope and cost of an Oregon installation.

What happens during an outage?

An automatic transfer switch for whole house generator equipment manages the change between utility power and backup power. It watches the incoming utility supply and signals the generator when that supply fails. The full sequence happens in stages, not as one instant switch.

From utility loss to generator power

The switch first confirms that the utility problem is more than a brief flicker. This short check helps prevent needless generator starts. Once the outage is confirmed, the controls start a set sequence.

1. Detect the outage. When incoming utility voltage falls outside the set range, the controller treats the condition as an outage. It waits through its programmed delay before acting.
2. Start the generator. After the delay, the controller sends a start signal to the standby generator. The generator starts and builds a stable supply of power.
3. Separate from utility power. Once backup power is stable, the switch disconnects the home’s electrical panel from the utility source. This separation keeps the two power sources from feeding the panel together.
4. Transfer the load. The switch connects the electrical panel to generator power. Selected circuits or the full panel then receive power, based on the installed system design.
5. Watch for utility return. While the generator runs, the switch keeps checking the utility source. It does not transfer back after a brief or unstable return.
6. Retransfer and cool down. After utility power stays stable, the switch reconnects the panel to the utility. The generator then runs without the home load for a short cooldown period before stopping.

Safe power transfer and load control

The transfer step has one main purpose: connect the home to one power source at a time. Proper automatic transfer switch sizing and setup help the system follow that sequence. The generator and switch must also match the home’s planned electrical load.

Some systems can support the full panel, while others manage selected loads. Load controls may pause large items when several appliances call for power at once. This approach keeps the generator from taking on more demand than the system was designed to handle.

Utility restoration and generator shutdown

Power returning at the street does not always mean it is ready for immediate use. The switch waits until the utility supply remains within its set limits. It then moves the home’s load back before the generator begins its cooldown.

The cooldown lets the generator run without carrying the home’s electrical demand. Homeowners do not need to operate the switch during this normal sequence. During any outage, follow Ready.gov power outage guidance and keep portable generators outdoors, away from doors, windows, and vents.

How is an automatic transfer switch sized?

An electrician sizes an automatic transfer switch for a whole house generator around the home’s electrical service and the chosen backup plan. The switch must handle the current that can pass through it. Its voltage, phase, enclosure, and control system must also match the service and generator.

Service rating and system fit

The electrician starts at the main service panel and confirms its amp rating. They also review the service voltage, panel layout, grounding, and the proposed switch location. Transfer equipment must prevent an unsafe connection between power sources, as noted in OSHA electrical rules.

A service-entrance-rated switch may be needed when the ATS becomes part of the home’s main service equipment. That choice affects the switch design, overcurrent protection, and installation layout. The electrician also checks whether the enclosure is suited for its indoor or outdoor location.

Whole-house and managed-load designs

A whole-house design places the ATS so it can transfer the home’s full electrical service. The ATS rating is commonly matched to that service. Yet the generator still needs enough capacity for the loads expected during an outage. Large loads can create a power demand that exceeds the generator’s output.

A managed-load design lets the system delay or shed selected loads when backup power is limited. This can support key circuits without sizing the generator for every large appliance at once. The right transfer switch selection depends on the home’s wiring and the owner’s outage priorities.

Sizing factor.	Whole-house approach.	Managed-load approach.
ATS placement.	Transfers the full home service.	Transfers selected loads or manages large loads.
ATS amp rating.	Typically matched to the service rating.	Based on the transferred panel and design.
Generator demand.	Must support expected loads together.	Controls when selected loads can run.
Best fit.	Homes seeking broad backup coverage.	Homes willing to rank outage priorities.

Load review and final configuration

The service rating alone does not show how much power the home will use during an outage. An electrician reviews heating and cooling equipment, water heating, cooking loads, pumps, and other major equipment. They consider both normal running demand and the brief surge when a motor starts.

The owner then helps set practical priorities. Refrigeration, lighting, communications, and medical equipment may rank above comfort or convenience loads. Those choices guide circuit placement and load controls. They also help the electrician pair the ATS with the planned Kohler or Cummins generator.

Final sizing also accounts for local permit needs and the equipment maker’s installation requirements. The switch, generator controls, and service equipment must work as one system. Pro Tech Power Corp includes the ATS within its Generator Installation Services, so configuration is addressed during system planning rather than after equipment arrives.

Where should the transfer switch be installed?

An automatic transfer switch for a whole house generator belongs in a location chosen as part of the complete electrical design. The best spot depends on the service entrance, main electrical panel, generator, building layout, and local rules. A licensed electrical contractor should confirm the final location before installation begins.

Indoor and outdoor locations

A transfer switch may sit indoors or outdoors when its enclosure is rated for that setting. An indoor unit needs a dry, accessible area with enough room for safe electrical work. An outdoor unit needs protection suited to rain, moisture, dust, and changing temperatures.

Outdoor placement may work well near the service entrance, but exposure still matters. Roof runoff, sprinklers, standing water, vehicle traffic, and stored items can make a location unsafe or hard to reach. The contractor should also check local code, permit rules, and utility requirements before choosing the enclosure and mounting point.

Distance from the panel and generator

The switch often sits near the main electrical panel or service equipment. This position can keep the electrical path direct and make the system easier to inspect. It also helps the switch connect the utility source, generator source, and selected home circuits as designed.

The generator’s location also affects the plan. Cable routes must fit the property without crossing spaces that create avoidable damage or access problems. Homeowners comparing layouts can review how transfer switch selection can affect electrical work and project cost.

Clear access and coordination

The area around the switch must stay open enough for safe operation, inspection, and future electrical work. It should not sit behind fixed shelves, stored boxes, or equipment that blocks the enclosure. OSHA electrical rules describe working space and access principles for electrical equipment.

Placement also requires coordination between the contractor, permitting office, and electric utility. The utility may need to approve service-entry equipment or disconnect power during part of the work. This review helps ensure the switch matches the home’s service and the planned generator system.

• Choose an enclosure rated for the installation setting.
• Keep the switch accessible and away from water exposure.
• Plan practical routes between service equipment, the switch, and the generator.
• Confirm permits, inspections, and utility steps before work starts.

A qualified installer can weigh these details as one system, rather than treating placement as a stand-alone choice. Ask about the proposed switch location when reviewing automatic transfer switch plans with a contractor.

Choosing the right transfer-switch configuration

An automatic transfer switch for a whole house generator must fit the home’s electrical layout, backup goals, and generator controls. These choices affect which circuits receive power and how the system responds during an outage. Review them with the installer before equipment is ordered.

Service-rated or non-service-rated switch

A service-rated transfer switch can serve as the main disconnect where utility power enters the home. A non-service-rated switch sits after an existing main disconnect. The right layout depends on the home’s service equipment, available space, and the planned installation point.

This choice is more than a matter of panel placement. The switch must safely keep utility and generator power apart. Pacific Northwest National Laboratory explains that an ATS supplies generator power without backfeeding the utility grid. An electrician should inspect the existing service and choose a configuration that fits it.

Whole-home or managed loads

A whole-home setup places the home’s main electrical load behind the transfer switch. That does not always mean every appliance can run at once. The generator still needs enough capacity for the loads that may operate during an outage.

A selected-load setup backs up only chosen circuits, such as lights, refrigeration, heating equipment, or a well pump. A managed-load setup can shed lower-priority equipment when demand rises. Homeowners should rank essential loads and note large appliances that start automatically.

• List the circuits that must remain available during an outage.
• Note large loads, including electric heat, water heating, pumps, and vehicle charging.
• Decide which loads may pause when generator demand is high.
• Ask how future electrical upgrades could affect the planned setup.

Load choices also shape project scope and price. Pro Tech Power Corp’s guide to transfer switch selection explains why the electrical work is part of the full installation plan.

Generator-control compatibility

The transfer switch and generator controller must communicate as one system. During an outage, the ATS detects the loss of utility power and tells the generator to start. It then checks that power is ready before connecting the home’s load.

Confirm that the selected switch supports the generator model, control signals, load-management hardware, and service voltage. Also ask whether the enclosure suits its planned indoor or outdoor location. These details should be settled before installation, not adapted after equipment arrives.

Pro Tech Power Corp prefers Kohler and Cummins generator systems. Matching the switch, controls, and generator within the chosen system helps the parts follow the intended start and transfer sequence. Ask the installer to explain that sequence and show which loads receive backup power.

Why professional installation matters

Safe separation from utility power

An automatic transfer switch for a whole house generator connects two powerful electrical sources to one home. That connection must keep generator power from feeding back onto utility lines. The Pacific Northwest National Laboratory explains that preventing utility backfeed is a core purpose of an automatic transfer switch.

A qualified electrician plans where the switch belongs and how it connects with the service panel. The work also calls for safe utility isolation while connections are made. The installer must then confirm that the switch transfers power as intended before the system is put into use.

Switch, generator, and load compatibility

The transfer switch, generator, service equipment, and planned loads must work as one system. A switch that does not match the equipment can undermine the entire backup plan. Professional load planning helps define which circuits need backup power and whether the proposed generator can support them.

Load planning starts with the home’s electrical needs during an outage. Some homeowners want broad coverage, while others need a smaller group of key circuits. The installer uses that plan to coordinate switch capacity, generator output, panel connections, and control wiring.

Equipment choice also affects the scope of electrical work and the installation budget. Homeowners can review common transfer switch selection factors before discussing the project with an electrician. That early review helps set clear goals without treating a product label as a full system design.

Permits, inspection, and coordinated installation

Professional installation brings the electrical work, generator placement, and transfer controls into one coordinated plan. The contractor can define the required permit and inspection path for the project site. This process also gives the homeowner a clear record of what equipment was installed and how the system was tested.

Testing should cover more than whether the generator starts. The installer should verify the transfer sequence, confirm the planned circuits receive power, and check the return to utility power. Clear labeling also helps homeowners understand which equipment belongs to the backup system.

Before hiring, ask how the contractor will plan loads, match equipment, handle permits, and test the transfer sequence. A useful list of whole home generator installer questions can help guide that talk. Pro Tech Power Corp installs Kohler and Cummins generator systems with automatic transfer switches as part of a complete installation.

Frequently Asked Questions

How much does an automatic transfer switch for a generator cost?

The total cost depends on the switch rating, enclosure, service-entry requirements, load controls, permits, and installation labor. A larger whole-home switch usually requires more extensive electrical work than a selected-circuit setup. An electrician must inspect the existing panel and backup-power plan before providing an accurate installed price.

What are the disadvantages of automatic transfer switches?

Automatic transfer switches cost more and use more control components than manual switches. They also require correct equipment matching, professional installation, and periodic testing. Most residential standby systems use an open-transition switch, which briefly disconnects the load while changing sources. The Pacific Northwest National Laboratory identifies this break-before-make design as the most common ATS type.

Do they make an automatic transfer switch for a portable generator?

Automatic transfer equipment exists for some portable-generator setups, but compatibility depends on the generator’s controls, electric-start capability, electrical output, and the transfer equipment. A portable generator must never connect directly to home wiring. OSHA says a qualified electrician must install a generator with a proper transfer switch before it connects to a building electrical system.

What are the common problems with ATS panels?

Common warning signs include failure to detect an outage, start the generator, transfer the load, or return the home to utility power. A switch may also report a fault or behave inconsistently during testing. The Pacific Northwest National Laboratory notes that regular operation and maintenance are crucial for ATS reliability during outages.
